I just made some measurements with an EPCOS/TDK B62152A1X1 binocular core. It has an ...

2025-01-02 16:37:13 UTC

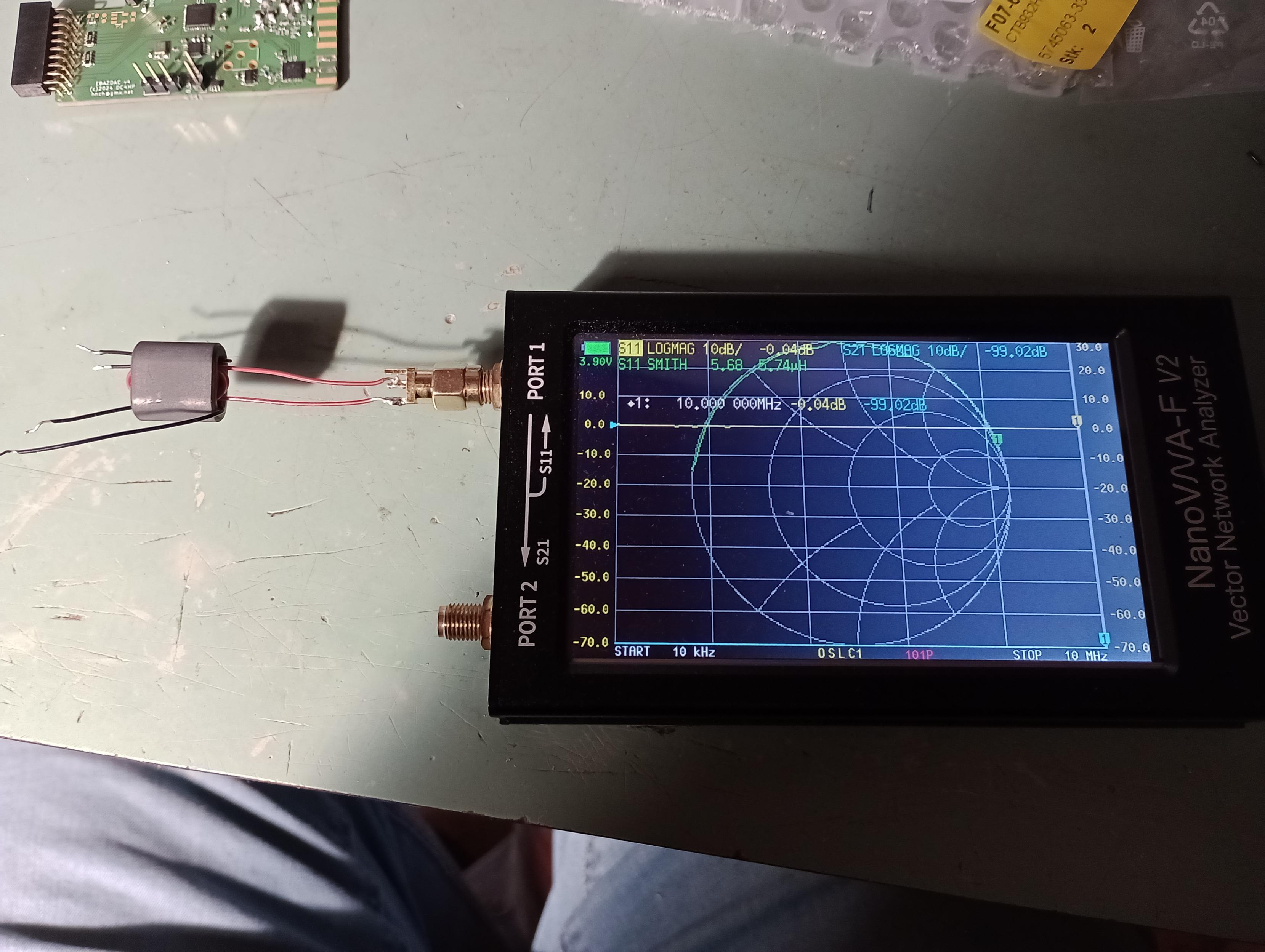

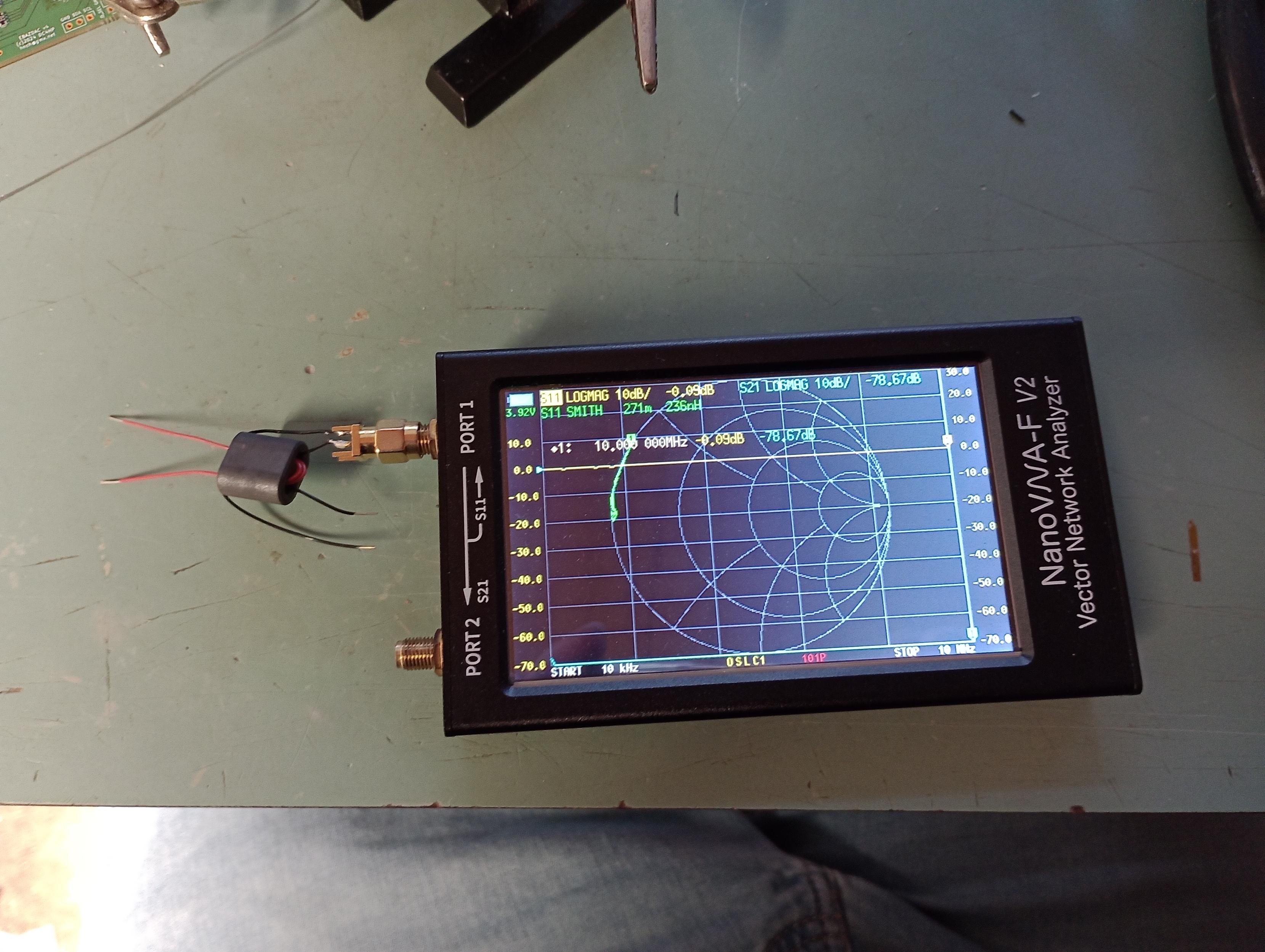

I just made some measurements with an EPCOS/TDK B62152A1X1 binocular core. It has an A_L of 330nH+-30% (assuming full turns around the center leg). 4 turns measure 5.74µH, so that figures. A single wire through one hole measures 236nH.

1/n
