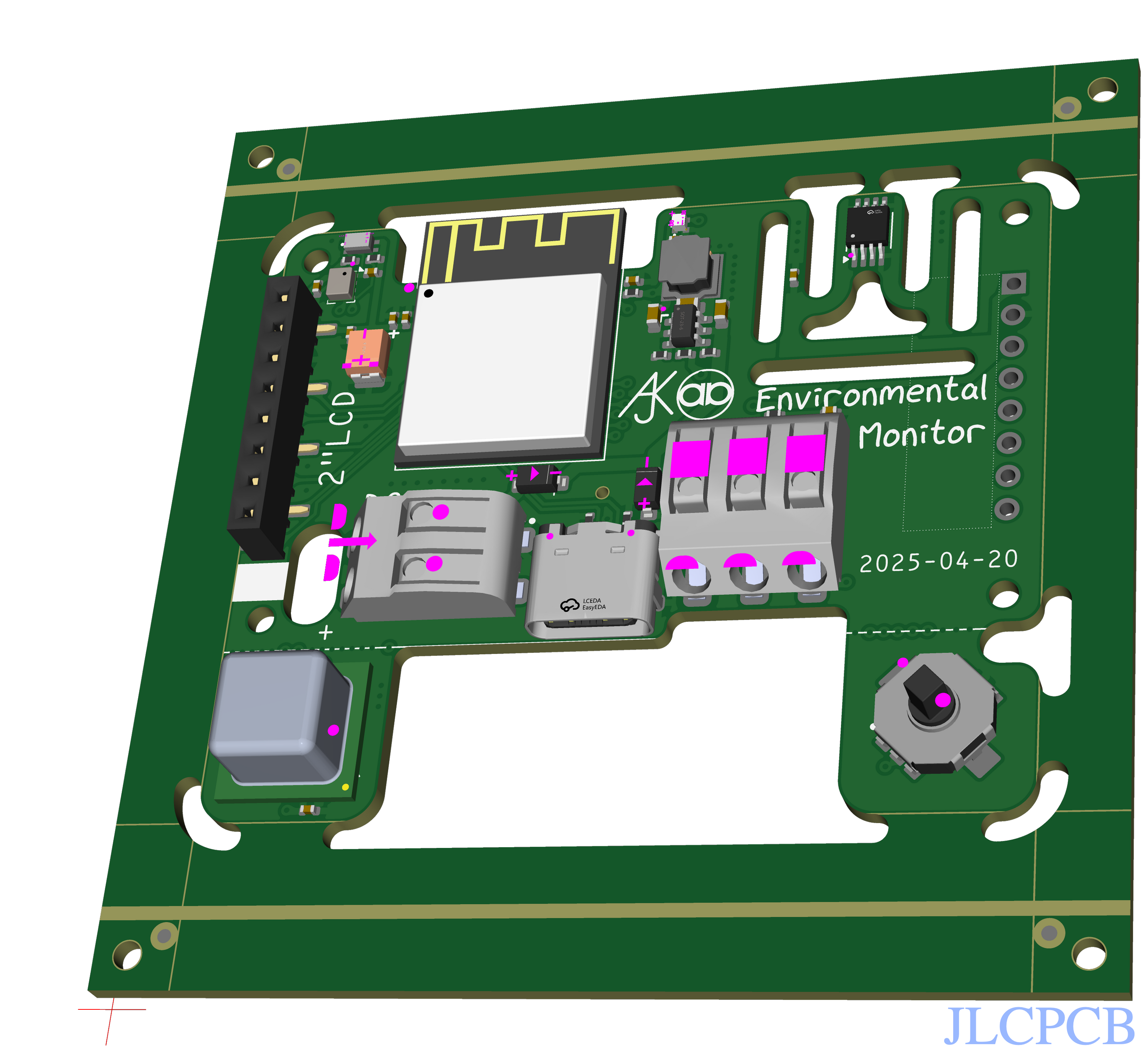

New version with a 4 way (well 5 way with push) navigation button.
The concept is it could be done without the $20 SCD41 and that part even snapped off. Also, if just sensor/display the button could be snapped off. The main board is same size as 2" LCD, but can fit 2.4" in theory.
The WAGOs allow power from behind (e.g. 12V DC), and also allow DS18B20 so you can monitor multiple temperatures (good for outside temp as well as inside, or maybe heating systems that need multiple sensors).
